구분 / 기종 Item / Model |
하사점검출장치 Bottom Dead Point Detector PS-200B |
미스피드 검출장치 Material Missfeed Detector PS-300B |
---|---|---|
제품사진 | ||
검출채널수 Number of detection channels |
2채널 Channel 2 |
6채널 Channel 6 |
비상출력 Emergency generating power |
NO. NC | |
비상정지시간 Emergency stop time |
약 5MS Approx. 5 minutes |
|
최소측정단위 Inital measuring unit |
1/1,000㎜ | - |
입력방식 Input type |
- | A모드, B모드 모두 가능 both A and B mode available |
입력전원 Input power |
AC 110/220V (50-60HZ) |
|
제품크기 Product size |
155W×87H×158D | 155W×87H×158D |
무게 Weight |
2.8㎏ | 2.5㎏ |

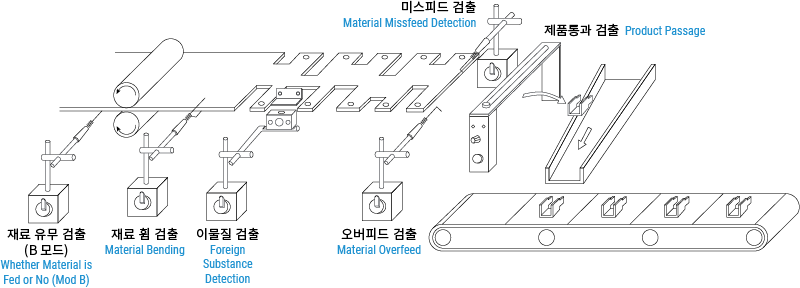

검출기능 Possible to Detect the Followings |
|
|
구분 / 기종 Item / Model |
통합형 검출장치 Combined Detector PS-402A |
하사점 검출장치 Bottom Dead Point Detector PS-500 |
---|---|---|
제품사진 | ||
검출채널수 Number of detection channels |
8채널 Channel 8 |
4채널 Channel 4 |
비상출력 Emergency generating power |
NO. NC | |
비상정지시간 Emergency stop time |
약 5MS Approx. 5 minutes |
|
입력방식 Input type |
A모드, B모드 모두 가능 both A and B mode available |
|
입력전원 Input power |
AC 110/220V (50-60HZ) |
|
제품크기 Product size |
155W×118H×158D | 167W×115H×170D |
무게 Weight |
3.0㎏ | 3.1㎏ |

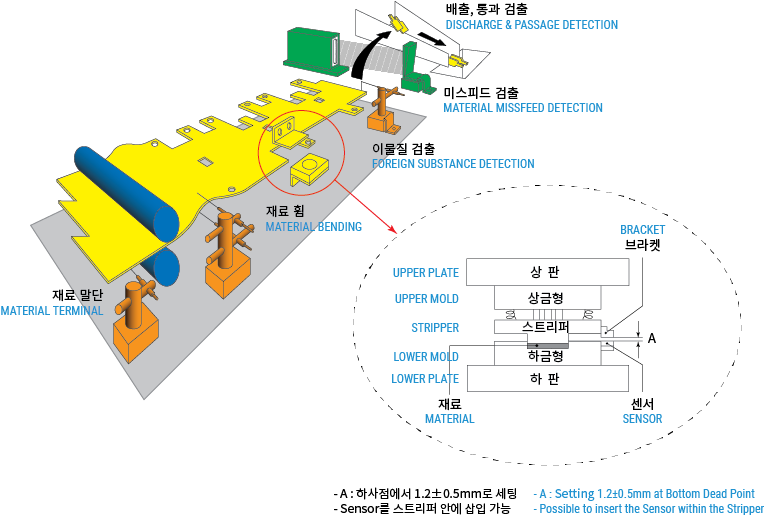

검출기능 Possible to Detect the Followings |
이물질 센서 Foreign substance sensor |
|
|
||
터치 센서 Touch sensor |
||
|
